Product Code: 130-00-C
Availability: Call for availability

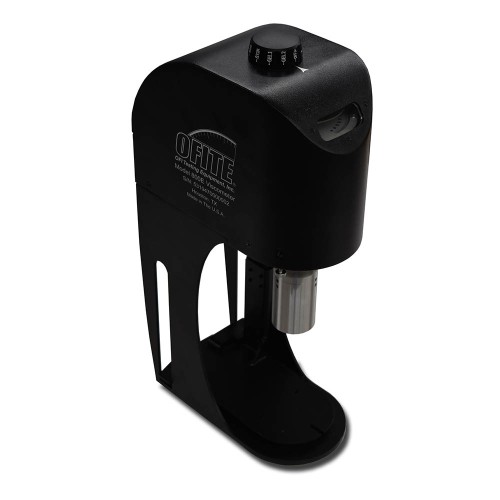

The Model 800E Viscometer represents the next step in the evolution of oilfield rheology. With a sleek new design and several performance enhancements, this new Rheometer will make the perfect addition to your lab.

  • Run automated tests from an app on a phone or tablet
  • Speeds are easily changed with a control knob
  • Shear stress values are displayed on a lighted, magnified dial for ease of reading
  • Motor speed is continuously monitored and adjusted
  • Suitable for both field and laboratory use
  • Conventional oilfield rotor, bob, and torsion springs maintains rheology history and reproducibility between instruments and laboratories (wide variety of bob and torsion springs available for a variety of fluids test)
  • Operates anywhere in the world without flipping switches or re-wiring
  • Threaded rotor - mechanically attaches to the unit the same way every time

Specifications

  • Instrument Geometry: True Couette Coaxial Cylinder
  • Speed Accuracy (RPM): 0.1
  • Motor Speeds (RPM): 8 Fixed Speeds (600, 300, 200, 100, 60, 30, 6, and 3)
  • Readout: Direct Dial
  • Power Requirement: 115 / 230 VAC, 50/60 Hz
  • Power Requirements: 13 - 16 VDC
  • Shipping Dimensions: 22" × 14" × 10" (56 × 36 × 25 cm)
  • Shipping Weight: 25 lb (11kg)

Part Numbers

  • #130-00-C With Carrying Case
  • #130-00-C-H With Case, Heat Cup, and Calibration Fluid, 115 Volt
  • #130-00-1-C-H With Case, Heat Cup, and Calibration Fluid, 230 Volt
  • #130-00-C-T With Case, Heat Cup, Calibration Fluid, and Tablet, 115 Volt
  • #130-00-1-C-T With Case, Heat Cup, Calibration Fluid, and Tablet, 230 Volt
