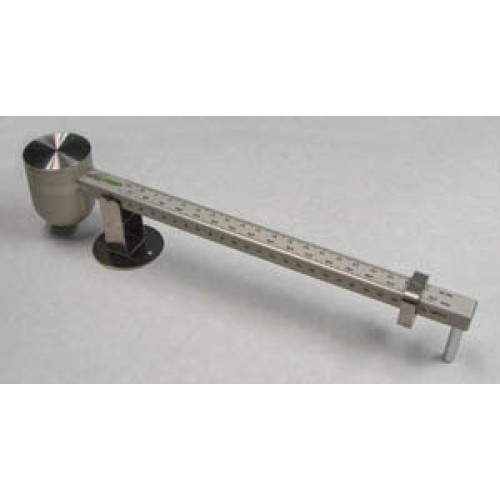

Metal Mud Balance Without Case

The 4-scale Metal Mud Balance features a Computer Numerically Controlled (CNC) all-machined manufacturing process, instead of the old die-cast molded method which has been used for years. This uniform method of construction results in a much stronger, more rugged instrument that sets the industry standard for accuracy, and is easier to calibrate. The zinc-aluminum alloy anodized beam is corrosion resistant and the laser-etched finish is easily cleaned and promotes clear, accurate readings. This truly represents the "next generation" of mud balance design, and will result in many years of useful service.

Features

• Density Measurement Ranges:
  • 6.5 - 23.0 lbs/gal
  • 0.79 - 2.72 specific gravity
  • 49 - 172 lbs/ft³
  • 340 - 1190 PSI/1000 ft

Specifications

• Size: 21.5" × 4.5" × 4" (55 × 11 × 10 cm)
• Weight: 4 lb 3 oz (1.9 kg)

Part Numbers

• #115-01
