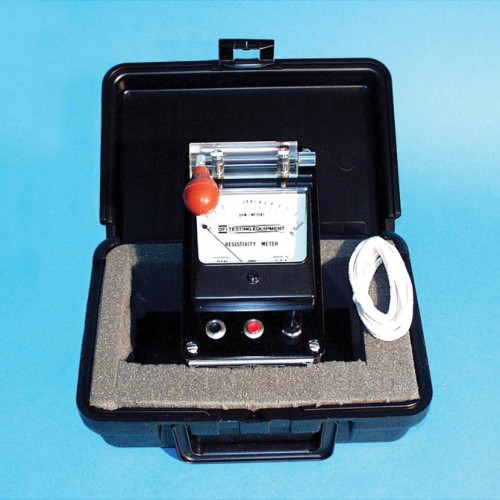

Resistivity Meter, Analog

Brand: OFI Testing Equipment, Inc.
Product Code: 130-85
Availability: 6
Attachments:
- 130-85_instructions.pdf

Download PDF

The Digital Resistivity Meter accurately measures the resistivity of fluids, slurries, and semisolids having resistivities from 0.01 to 400 ohm-meters. The digital display shows both resistivity (in ohm-meters) and concentration of NaCl (in ppm, kppm, and gr/gal), as well as temperature (in °C or °F).

Features

  • Measures resisitivity of a small sample of fluid, slurry, or semi-solid
  • Range: 0.01 to 10 ohm-meter
  • Reading can be converted to PPM NaCl using the supplied Nomograph
  • Removable probe with built-in thermometer
  • Powered by readily available 9 volt batteries

Components

  • #130-85-02: Resistivity Probe
  • #130-85-04: Suction Bulb for Probe, Rubber (63207)
  • #147-02: Battery, 9 Volt, Alkaline
  • #165-43: Pipe Cleaner

Optional

  • #130-87-014: Calibration Fluid, 1,413 µmhos, 1 L
  • #130-87-015: Calibration Fluid, 10,000 µmhos, 1 L
  • #130-87-016: Calibration Fluid, 50,000 µmhos, 1 L

Part Number

  • #130-85
