Filter Press, HTHP, Model MB, 4 Unit
Filter Press, HTHP, 175 mL, 4 Unit, with Regulators and Temperature Controllers
http://schema.org/OutOfStock

Automatic Pressure Control System for PPT, 4 Unit

Brand: OFI Testing Equipment, Inc.
Product Code: 171-89
Availability: Call for availability
Attachments:
- attachment_66f556268ce76_171-89_instructions.pdf
- attachment_662928cf567f0_171-89_brochure.pdf

Download PDF

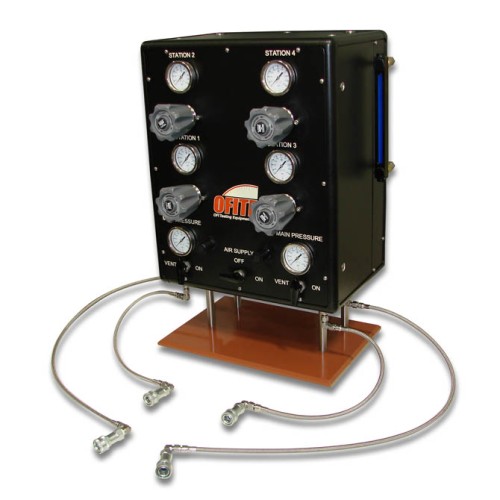

The OFITE Pressure Control System can provide and maintain a constant pressure on up to four Permeability Plugging Testers. It consists of two air-driven pumps and four hydraulic, self-venting regulators. Replacing the manual hand pump, the air-driven pump automatically engages when you start the test and maintains a constant pressure for the duration.

Features

  • Incorporates pressure relief valves for safety
  • Maintains constant pressure

Specifications

  • Pressure medium: hydraulic fluid

Requirements

  • Air Supply: 130 PSI

Part Numbers

  • 171-89: 4,000 psi
  • 171-89-6K: 6,000 psi
