Drilling Fluids

http://schema.org/OutOfStock
Product Code: 144-20
Availability: Call for availability

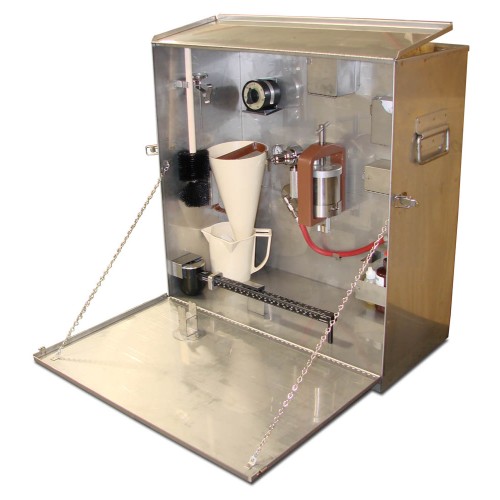

Included in the Rig Laboratory are a mud balance, marsh funnel, measuring cup, filter press, Sand Content Kit, timer, and all the reagents and labware for performing chloride ion analysis. An air hose and connections are included to run the filter press from rig air.

Components

  • #110-10: Marsh Funnel Viscometer, Plastic
  • #110-20: Measuring Cup, 1,000 mL, Plastic
  • #115-01: Mud Balance with Machined Arm, Metal
  • #140-10: Wall Mount Filter Press
  • #140-55: Filter Paper, 3 1/2", Box of 100
  • #141-13: Air Hose, Low Pressure, 15"
  • #141-19: Air Hose Adapter

Sand Content Kit

  • #167-10: Sieve, 200-Mesh
  • #167-20: Funnel
  • #167-30: Tube

Labware

  • #147-50: pH Paper, Hydrion Dispenser, pH 2 - 10, 1 - 11
  • #147-70: pH Paper, Hydrion Dispenser, pH 10 - 12, 12.5 - 14
  • #153-01: Bottle Brush, 3" × 12"
  • #153-03: Brush, Graduate, 1/2" × 8"
  • #153-18: Graduated Cylinder, 10 mL × .1 mL, Glass
  • #153-26: Titration Dish, Polyethylene
  • #153-28: Stirring Rod, 4", Polyethylene
  • #153-34: Pipette, 1 mL × .01 mL, Glass
  • #153-40: Pipette, 10 mL × .1 mL, Glass
  • #154-10: Thermometer with Metal Dial, 5" Stem, Dual-Scale: 50° - 500°F (0° - 250°C)
  • #155-20: Timer, 60 Minutes Interval
  • #155-25: Stopwatch, Digital

Reagents

  • #206-01: Deionized Water, 8 oz
  • #215-00: Potassium Chromate Solution, 2 oz UN3139
  • #265-00: Silver Nitrate Solution, .001 g, 0.0282 N, 8 oz
  • #265-06: Silver Nitrate Solution, .01 g, 0.282 N, 8 oz

Case

  • #141-17: Clip for Graduated Cylinder
  • #144-21: Cabinet, Stainless Steel
  • #163-26: Clip, Small
  • #163-27: Clip, Medium
  • #163-28: Clip, Large
  • #144-25: Air Manifold

Optional

  • #143-05: CO2 Bulbs, Box of 10, UN2037
  • #144-20-SP: Spare Parts Kit
  • #144-22: Rig Laboratory with Dead Weight Hydraulic Assembly

Size: 26" × 13" × 26.75" (58 × 33 × 68 cm)
Weight: 75 lb (34.1 kg)

Crated Size: 31" × 18" × 34" (79 × 46 × 86 cm)
Crated Weight: 140 lb (63.5 kg)

Part Numbers

  • #144-20: Standard
  • #144-22: With Dead Weight Hydraulic Assembly
