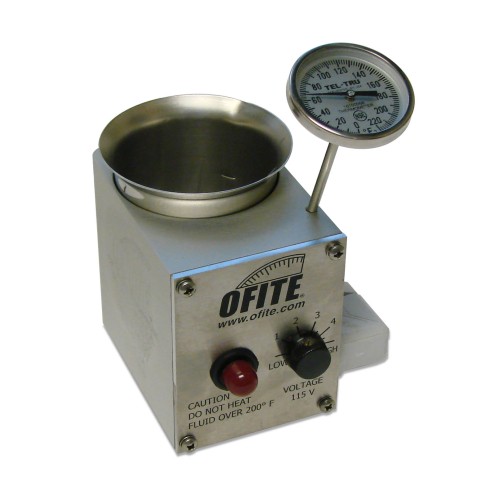

OFI Testing Equipment, Inc. - Thermocup with Removable Stainless Steel Cup

Hand Crank Rheometer

Thermocup without Removable Stainless Steel Cup

Thermocup with Removable Stainless Steel Cup

Brand: OFI Testing Equipment, Inc.

Product Code: 130-38-30

Availability: 8

Attachments:
- 130-38-20_instructions.pdf
- 130-38-20_brochure.pdf

Available Options

Voltage_130-38-30:
115 Volt (130-38-30)
230 Volt (130-38-35)

Download PDF

The Thermocup is designed for controlling the temperature of a mud sample while taking readings with a viscometer. The holes in the stage of OFITE Viscometers have been positioned to hold the heated cups at a 45° angle to the line of the instrument for better accommodation of thermometers and power cables. A removable stainless steel cup (included) makes cleaning safer and easier.

Features

Anodized finish provides better heat transfer than paint
Strain relief on the power cable protects wiring from damage
Includes removable stainless steel cup (#130-76-10-10)

Components

#130-26: Heating Element, 150 Watt, 115 Volt
#130-26-1: Heating Element, 150 Watt, 230 Volt
#130-31: Thermostat
#130-38-014: Resistor
#130-38-2: Lens for Lamp, Red
#130-38-3: Lamp
#130-76-10-10: Cup, Stainless Steel
#154-00: Thermometer
#171-32: Knob

Specifications

Size: 3” × 4” × 4.5” (8 × 10 × 11 cm)
Weight: 2.6 lb (1.2 kg)

Part Numbers

#130-38-30: 115 Volt
#130-38-35: 230 Volt
