Product Code: 120-40
Availability: Call for availability

The Model 2040 Automated HTHP (or HPHT) Cement Consistometer was specifically engineered to determine the thickening time of oil well cements under simulated down-hole pressures and temperatures. The Model 2040 offers a computerized Data Acquisition and Control system, automatic temperature and pressure control, and a variable speed motor all standard in one easy-to-use unit.

Features

  • Touch-screen display
  • Small footprint, our new and slim design saves valuable lab space
  • Automatic temperature and pressure control,
  • Variable speed motor (0 - 150 RPM) powered by a magnetic drive
  • Windows® based, Computerized Data Acquisition and Control system, provides detailed test information in convenient formats, and can control multiple units from one computer via RS-232 or Ethernet connection
  • Safety Features, temperature, pressure, and consistency alarms
  • Status indicator, symbolizes (3) selectable ranges of consistency
  • Conforms to API Specification 10 guidelines

Specifications

  • Maximum Pressure: 40,000 PSI (275.8 MPa)
  • Maximum Temperature: 600°F (315°C)
  • Consistency Range: (0 - 125 Bc)
  • Digital Temperature Controller with 0.1° resolution
  • Pressure indicator resolution is 100 PSI and includes both high- and low-pressure alarms
  • Slurry cup rotational speed is 150 RPM
  • Size: 22.5" × 27.5" × 70" (57cm × 70cm × 178cm)
  • Weight: Approx. 450 lb (204kg)
  • Crated Size: Approx. 26" × 34" × 76" (66cm x 86cm x 193cm)
  • Crated Weight: Approx. 750 lb (340kg)

Requirements

  • Air / Nitrogen supply (100 - 120 PSI)
  • Water supply for cooling (40 PSI)
  • Water Drain
  • 230-Volt, 50 / 60 Hz, 25-Amp electrical power supply

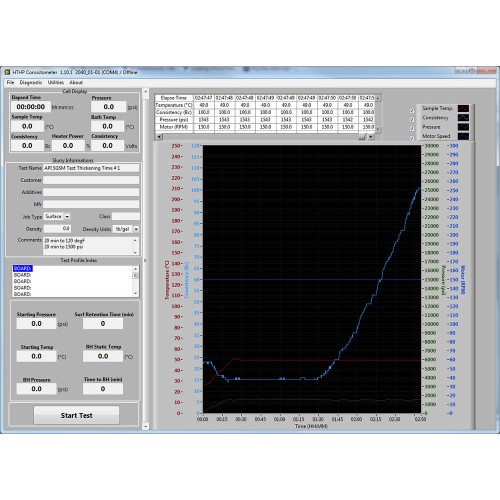

Software Features

  • Reports real-time data that can be exported to an Excel, Word, or similar file
  • Enables you to program the temperature, pressure ramps, and motor speed
  • Operates multiple units with one computer

Components

  • #120-001: Mineral Oil, 1 Gallon
  • #120-10-1: Tool Kit
  • #120-103: Rupture Disk, 45000 PSI
  • #120-40-032: Filter, High Pressure
  • #120-40-033: Filter Element
  • #120-106-002: O-ring for Filter Element
  • #120-35-031: O-ring for Cell, Viton®
  • #120-35-033: Air Filter
  • #120-35-132: Oil Filter
  • #120-40-029: O-ring for Cooling Jacket, FFKM
  • #120-401: O-ring for Cell, Metal
  • #120-401-V: O-ring for Cell, Viton®
  • #120-50-040: Wrench, Box End, 5/8"
  • #120-59-076: Hose Kit
  • #122-077: Fuse, 10 Amp, 5 mm × 20 mm

Slurry Cup Components

  • #120-519: Slurry Cup Assembly without Expansion Chamber
  • #120-521: Slurry Cup Assembly with Expansion Chamber
  • #120-501: Sleeve
  • #120-501-T: Sleeve, Tapered
  • #120-502: Diaphragm, Molded
  • #120-502-1: Diaphragm, Flat
  • #120-503: Paddle Pin
  • #120-504: Pivot Bearing
  • #120-505: Pivot Bearing Gasket
  • #120-506: Paddle
  • #120-507: Paddle Shaft, 7.75" (For Slurry Cup without Expansion Chamber)
  • #120-508: Diaphragm Retaining Ring
  • #120-509: Drive Disk
  • #120-510: Drive Bar
  • #120-511: Shear Pin
  • #120-512: Drive Pin
  • #120-513: Gasket
  • #120-514: Drive Disk Set Screw
  • #120-515: Diaphragm Support
  • #120-516: Slurry Cup Base
  • #120-517: Slurry Cup Locking Ring
  • #120-520: Paddle Shaft, 9.125" (For Slurry Cup with Expansion Chamber)
  • #122-522: Expansion Chamber Lid

Potentiometer Components

  • #120-628: Potentiometer Assembly
  • #120-602: Calibration Spring
  • #120-603: Body
  • #120-604: Resistor
  • #120-605: Contact Spring
  • #120-606: Contact Arm
  • #120-607: Contact Strip
  • #120-608: Grounding Cable Retaining Screw
  • #120-609: Grounding Contact Spring

Calibration Components

  • #120-35-040: Calibration Stand Assembly
  • #120-75-9: Weight Hanger
  • #120-75-10: Weight Set

Optional

  • #120-35-SP: Spare Parts Kit
  • #120-506M: Paddle for Dynamic Settling Test

Part Numbers

  • #120-40: Model 2040 Automated HTHP Consistometer
  • #120-40-DAS: Model 2040 Automated HTHP Consistometer with Computer
Specifications
Maximum Pressure 40,000 PSI
Maximum Temperature 600°F
