Product Code: 120-51
Availability: Call for availability

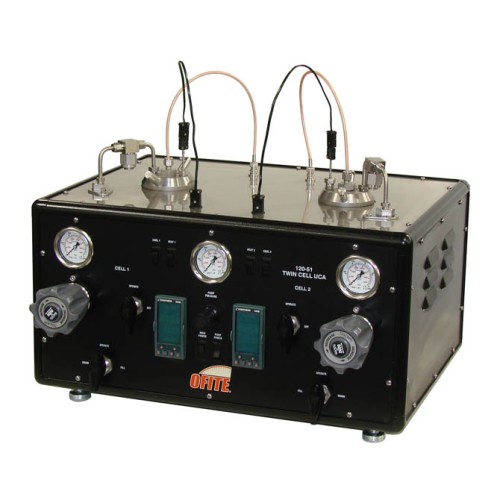

By measuring the change in velocity of an acoustic signal, the Ultrasonic Cement Analyzer provides a continuous non-destructive method of determining compressive strength as a function of time while at temperature and pressure.

Features

  • Cement samples are not destroyed at time intervals
  • Self-venting regulators provide accurate pressure control
  • Temperature control (up to 400°F) and pressure control (up to 5,000 PSI) are available to simulate down-hole conditions
  • Unique technology results in a cleaner signal, so transit times and data are more accurate
  • Data is available instantly on-screen and is automatically down-loaded to a Microsoft Excel spreadsheet for easy analysis

Specifications

  • Maximum Temperature: 400°F (204.4°C)
  • Maximum Pressure: 5,000 PSI (34.47 MPa)
  • Size: 24” × 18” × 12” (61 × 46 × 30 cm)
  • Weight: Approx. 70 lb (32 kg)

Requirements

  • Air Supply: 100 PSI (690 kPa) Recommended, 150 PSI (1,035 kPa) Maximum, ¼” NPT Connector
  • Water Supply: 40 - 100 PSI, 40° - 100°F, ¼” NPT Connector
  • Coolant Supply: ¼” NPT Connector
  • Power Supply:
    • Electronics: 230 - 240 Volt, 50 - 60 Hz, 2 Amp
    • Heaters: 230 - 240 Volt, 50-60 Hz, 8 Amp
  • Computer
    • Windows XP or higher
    • RS-232 Serial Port (or Serial to USB Adapter)
    • Minimum Screen Resolution: 1280 × 680

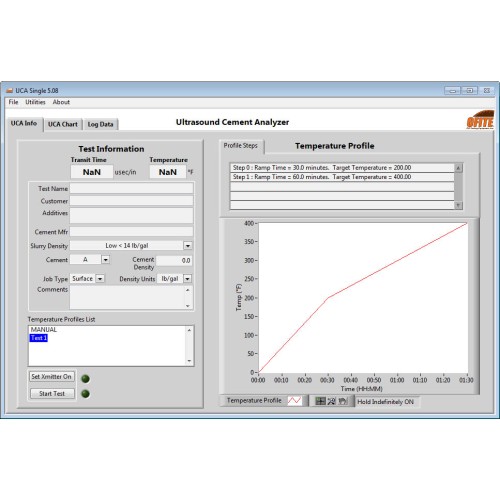

Software Features

  • Reports real-time data that can be exported to an Excel, Word, or similar file
  • Enables you to program multiple temperature ramps
  • Operates multiple units with one computer

Optional Accessories

  • 120-53 - High Pressure SGSM, mechanically measures gel strength

Part Number

  • #120-51
