CLF-40 Compressive Load Frame

Brand: OFI Testing Equipment, Inc.
Product Code: 120-285
Availability: Call for availability
Attachments:
- attachment_6759dbc1b2288_120-285_instructions.pdf
- 120-285_brochure.pdf

Download PDF

Introduction

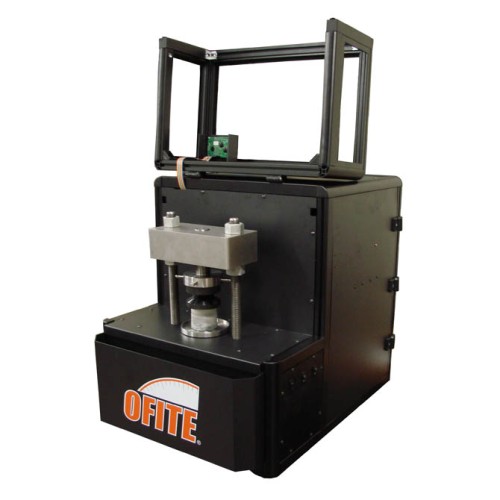

The CLF-40 Automated Compressive Load Frame was designed to determine the compressive strength of a well cement or proppant. The most common means of determining the compressive strength of a cement involves applying a force to the sample at a constant rate until the sample fails. The maximum loading at which the cement fails is defined as the cement's compressive strength.

Features

  • Windows® based, Computerized Data Acquisition and Control system: provides detailed test information, precise control, and allows cylindrical and cube-shaped samples
  • Small foot-print: saves valuable lab space and increases efficiency with quick and easy clean up

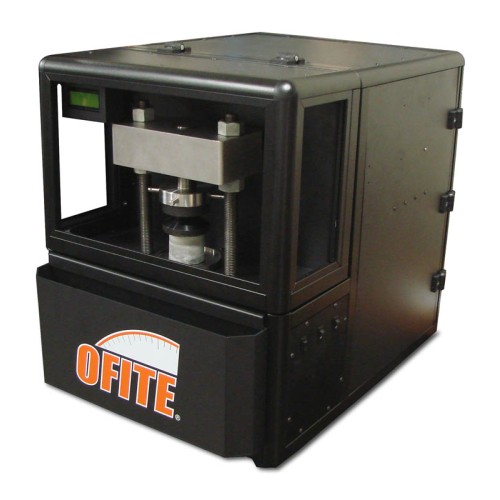

  • Safety minded: clamshell head design and safety switches protect people and equipment from possible debris during operation
  • Prevents over pressure: a safety head, rupture disk, and high-pressure alarm assembly
  • Self-Aligning platens: easier to load samples and allows for equal force to be applied
  • Communication: operates in standalone or with computer control via RS-232 or Ethernet connections
  • Loading Rates: variable load rate and constant load testing

Data Acquisition Features:

  • Tailored interface so the most common actions are the easiest to locate
  • Tab and drop-down based software, optimizing page screen areas, without sacrificing the amount of information presented at once
  • Capable of testing varying samples and displaying results on a real-time chart
  • Records historical data for easy analysis

Specifications

  • Maximum press capacity: 40,000 lbf.
  • Maximum Pressure: 10,000 PSI (based on a 2” cement cube with surface area of 4 in2)
  • Minimum press threshold: 1,000 lbf.
  • Minimum Pressure: 250 PSI (based on a 2” cement cube with surface area of 4 in2)
  • Loading rates variable from 250 to 40,000 lbf/min. (increments of 250)
  • Size: 23” W × 23” D × 26.5” H (58 × 58 × 67 cm)
  • Weight: 225 lb. (102 kg)

Requirements

  • Power Supply: 115 / 220 Volt, 50/60 Hz

Part Numbers

  • #120-285: 115 Volt
  • #120-285-230: 230 Volt
  • #120-285-DAS: With Computer, 115 Volt
  • #120-285-230-DAS: With Computer, 230 Volt
